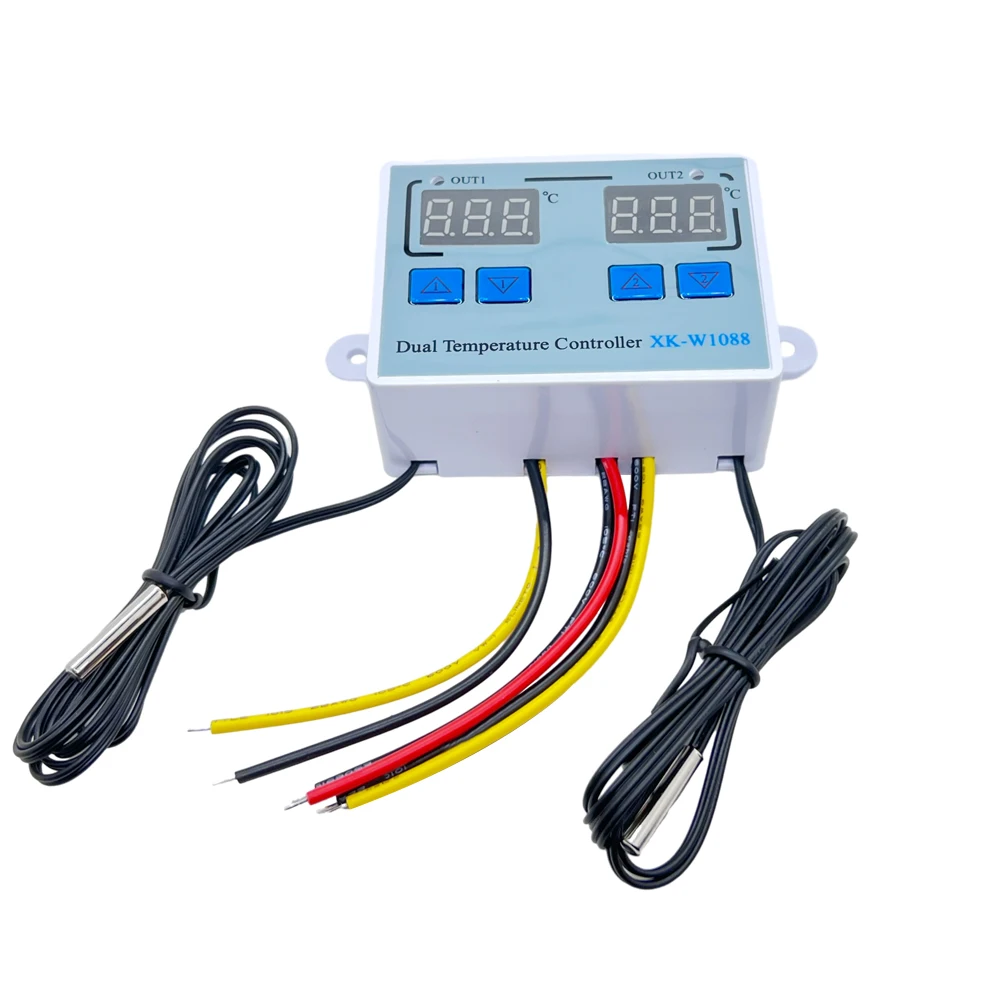

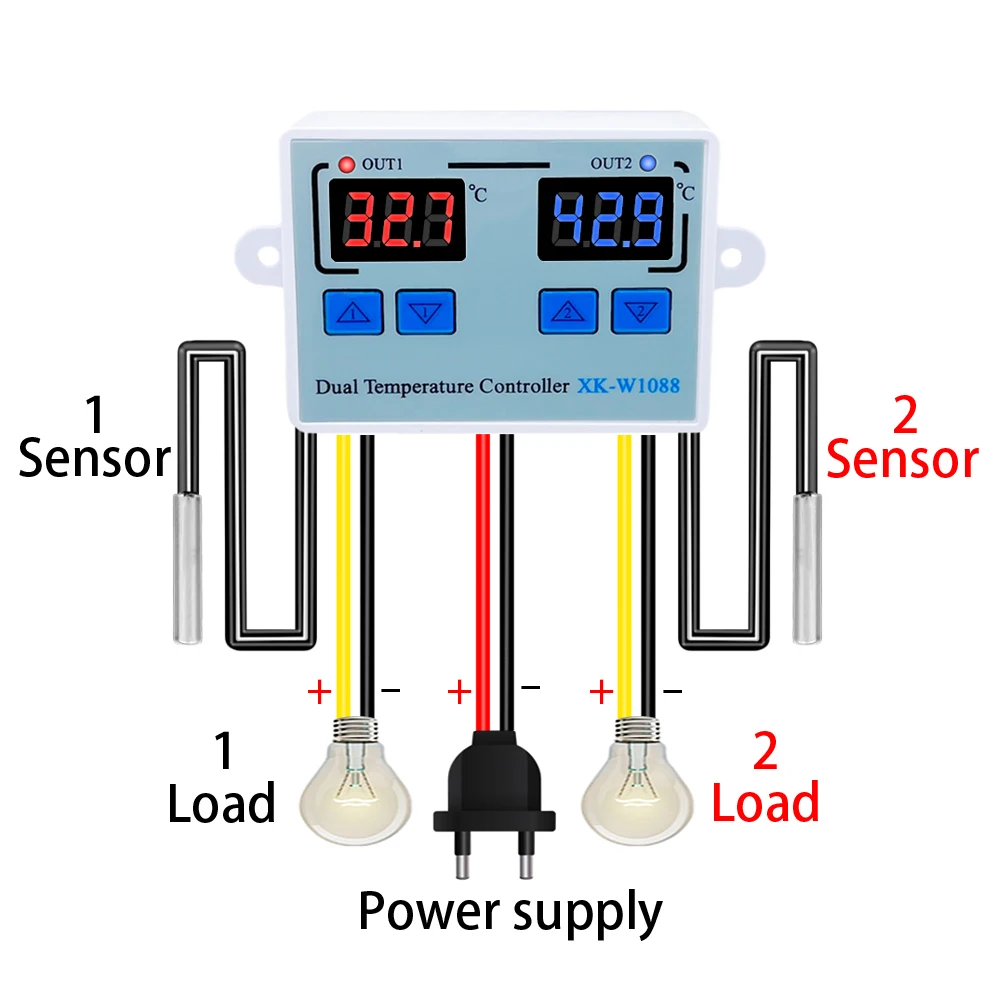

W1088 Dual LED Digital Temperature Sensor Meter Controller Electric Heating Thermostat 220V Aquarium Incubator Thermoregulator

Features:
Heating or cooling control
Red and blue dual led display
Independent Dual-way temperature controller
Temperature display resolution 0.1
Directly power output
Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc.

Specifications:
Display Type: Digital
Shell Material: ABS + PCB
Temperature Sensor: NTC 10K
Senor Length: 1m
Temperature Measuring Range: -55 ° C ~ 120 ° C
Resolution: 0.1 ° C
Accuracy: ±1° C

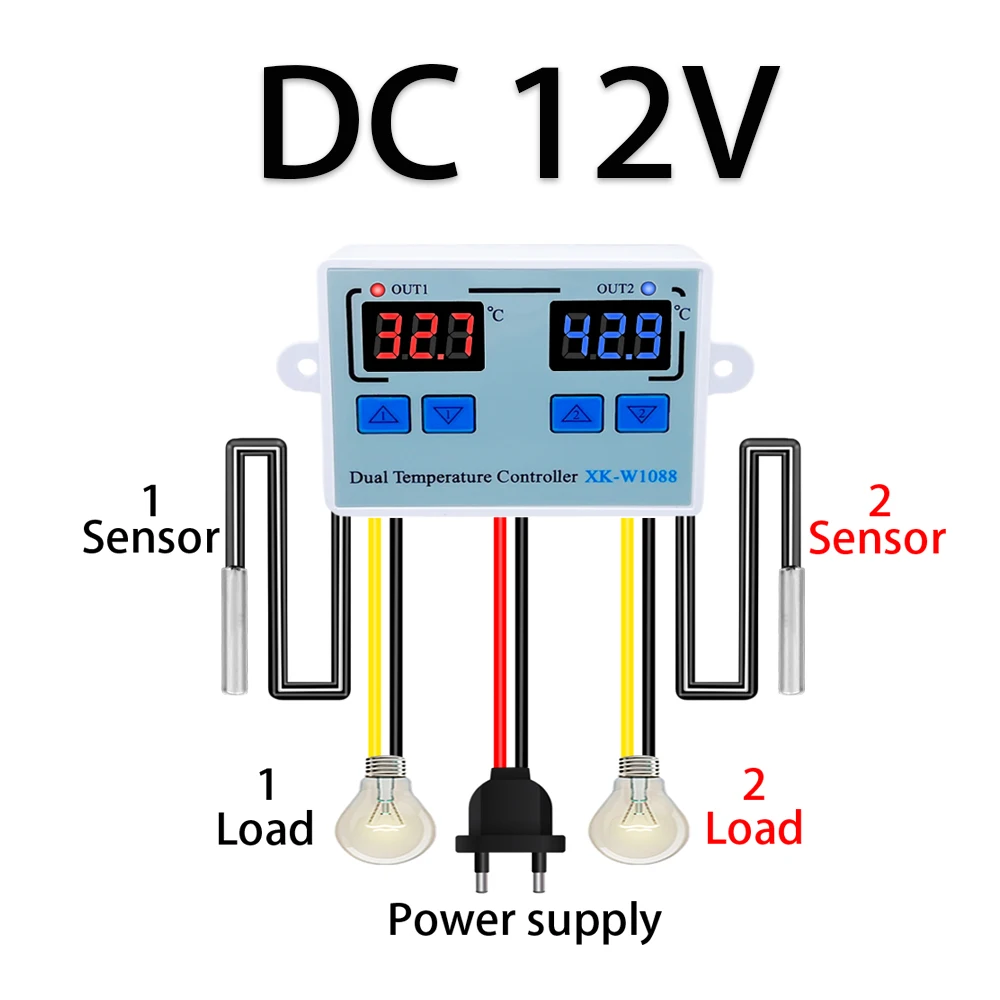

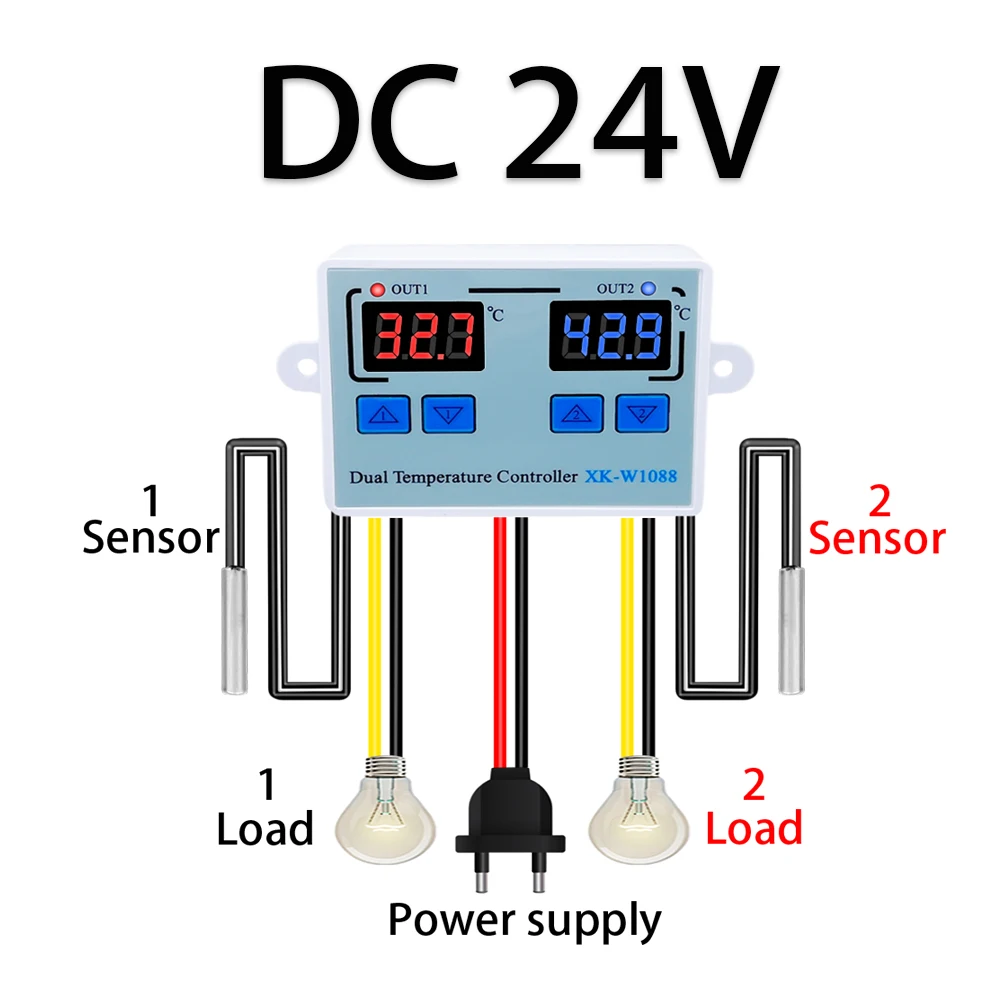

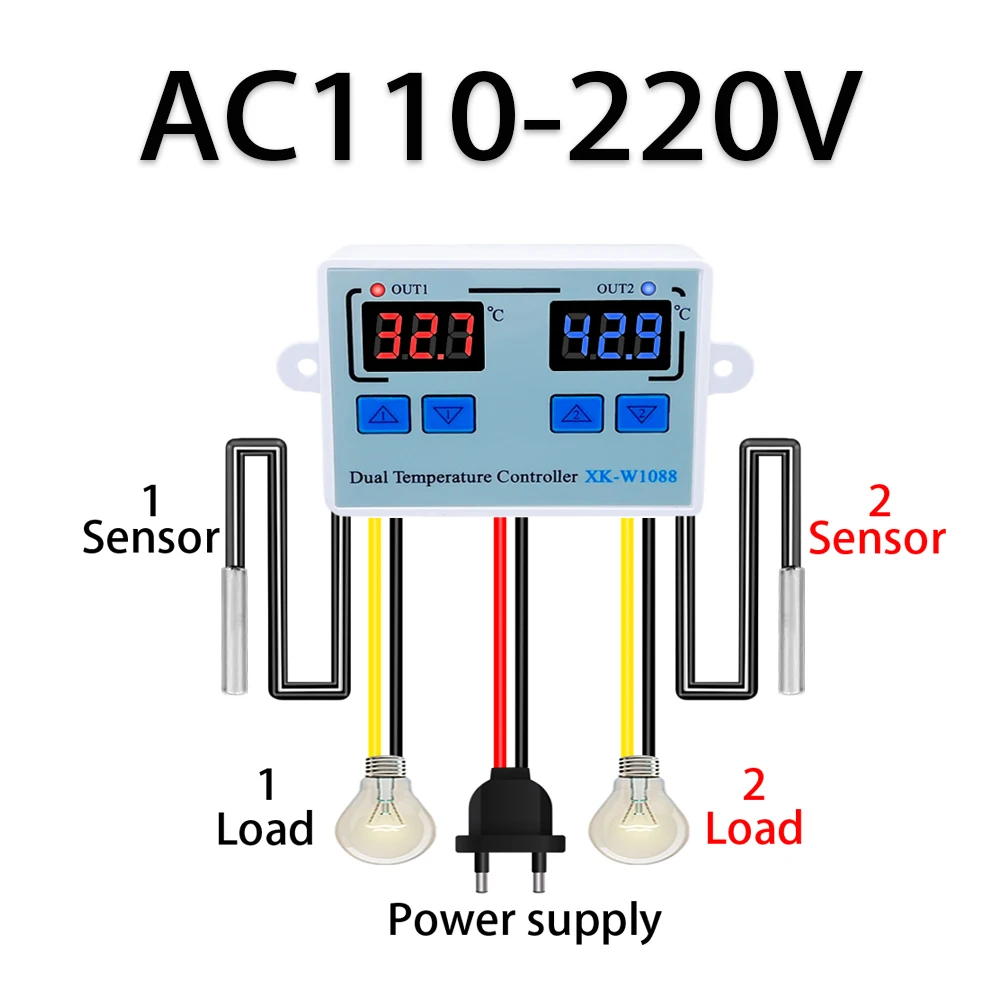

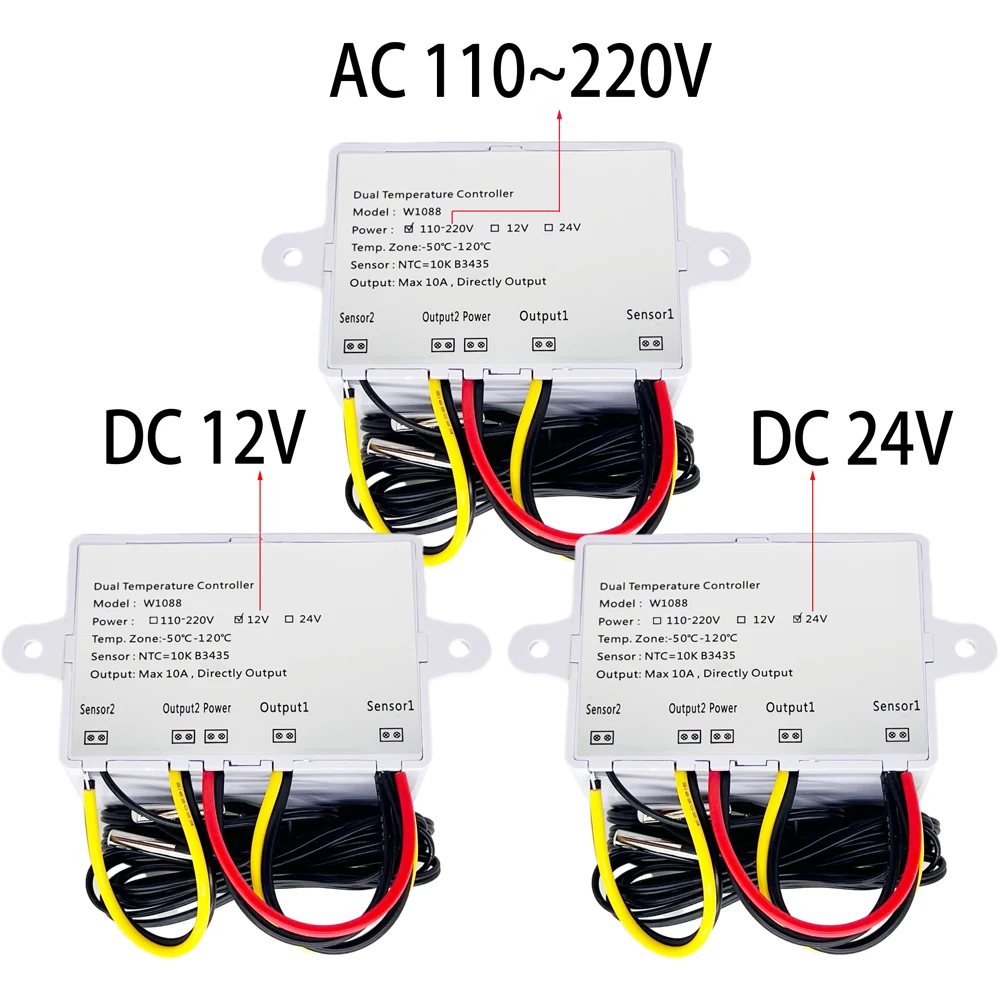

Power Supply: 110-220VAC 50/60Hz, 12V DC , 24V DC(Please choose power supply when ordering)
Relay Contact Capacity: Two Relay Max 10A
Output Type: Direct Output

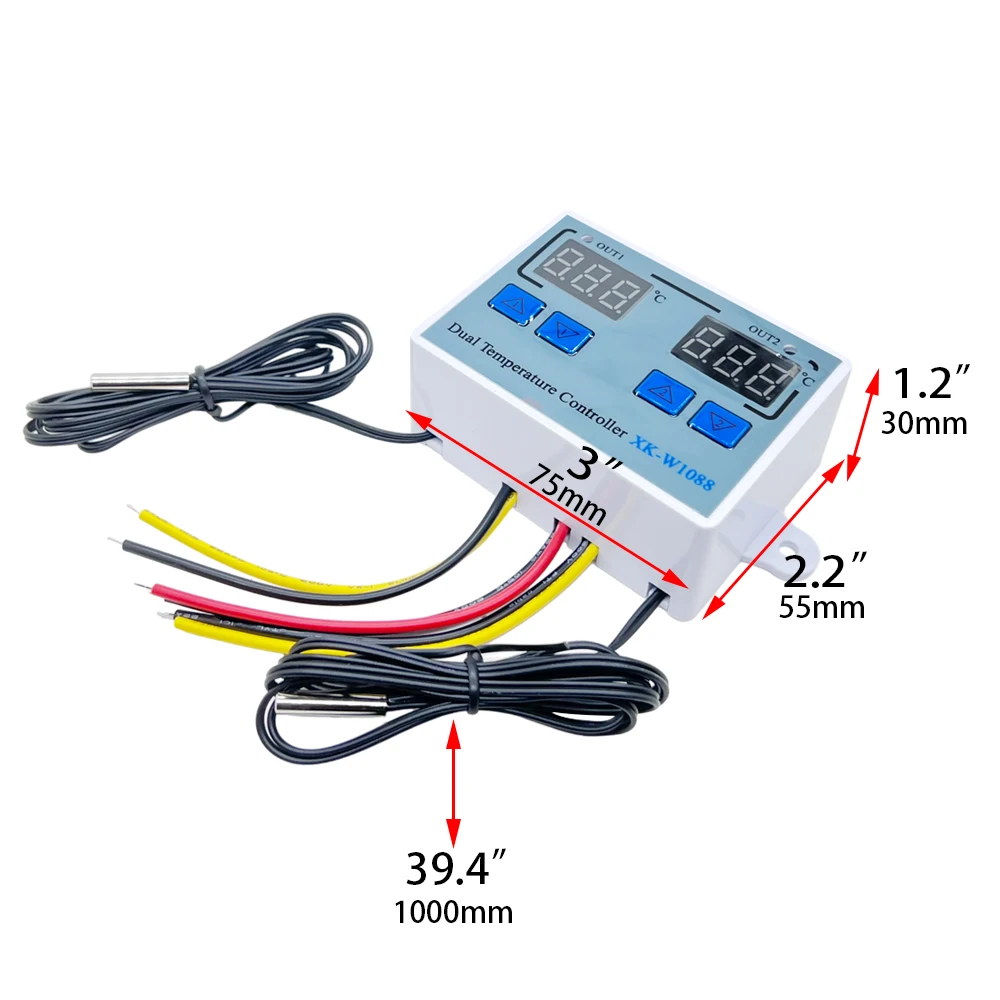

Size: 72*56*31mm

Packing List:

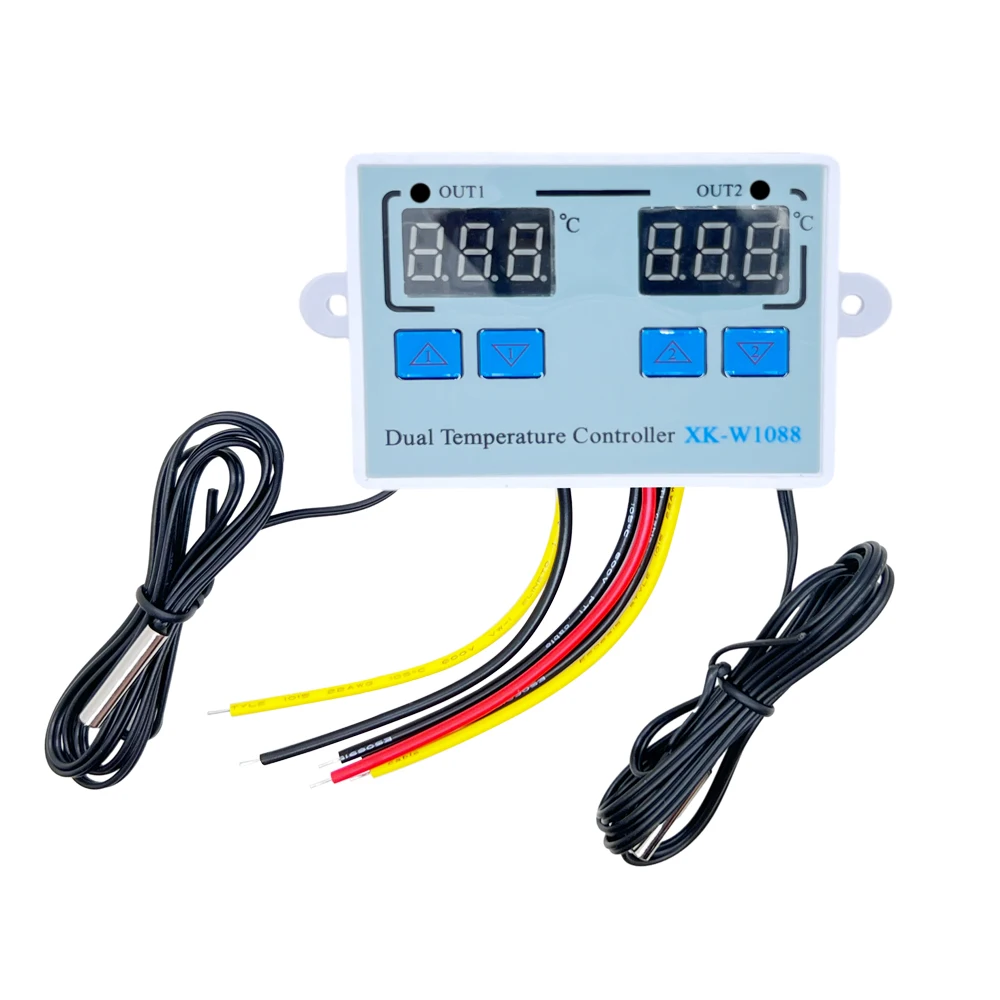

1 x Temperature Controller
2 x Waterproof Sensor

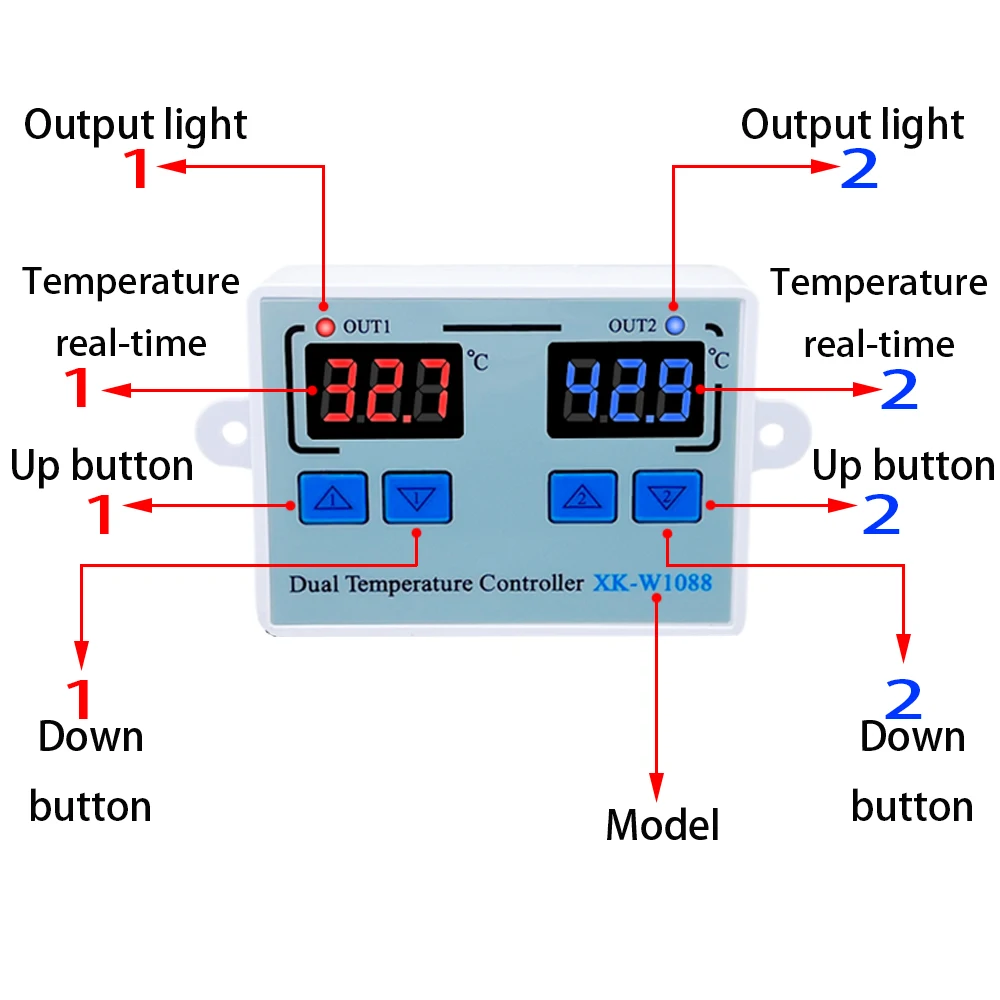

Operation instruction:
A. Set The Starting Temperature:
Press the UP button once to display the starting temperature. Long press the UP button for about 3 seconds,The required temperature can be set by the UP and DOWN buttons.

B. Set Stop Temperature:
Press the DOWN button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the UP and DOWN buttons.

C.Press UP ① button and Up ② button at the same time to setting mode:
Press UP ① and UP② buttons for 3 seconds at the same time to enter the setting mode, display P0, the first group temperature delay, press UP ② and DOWN ② to adjust, 0~60 minutes, default 0, after adjustment, press UP ① since P1, the second group temperature delay, press UP ② and DOWN ② to adjust, 0~60 minutes, default 0. （P2-P3 has no mode）

                                                                                                                                                               Menu Instruction

D. Reset Factory Settings:
When the power is on, press the DOWN ① and DOWN ② buttons at the same time for 3 seconds. The reading shows 888, and then the controller automatically jumps to the detected temperature.

E. Temperature Correction:

Press UP ① and Down ① at the same times for 3 seconds to display 0.0, and then set the value by pressing the Up① and Down① buttons.
Positive Value = Measured Value +Corrected Value( NO.2 temperature correction is the same method, press UP ② and Down ② buttons  )

F. Heating Cooling Method:

Operation Method
